Vibratory Plate

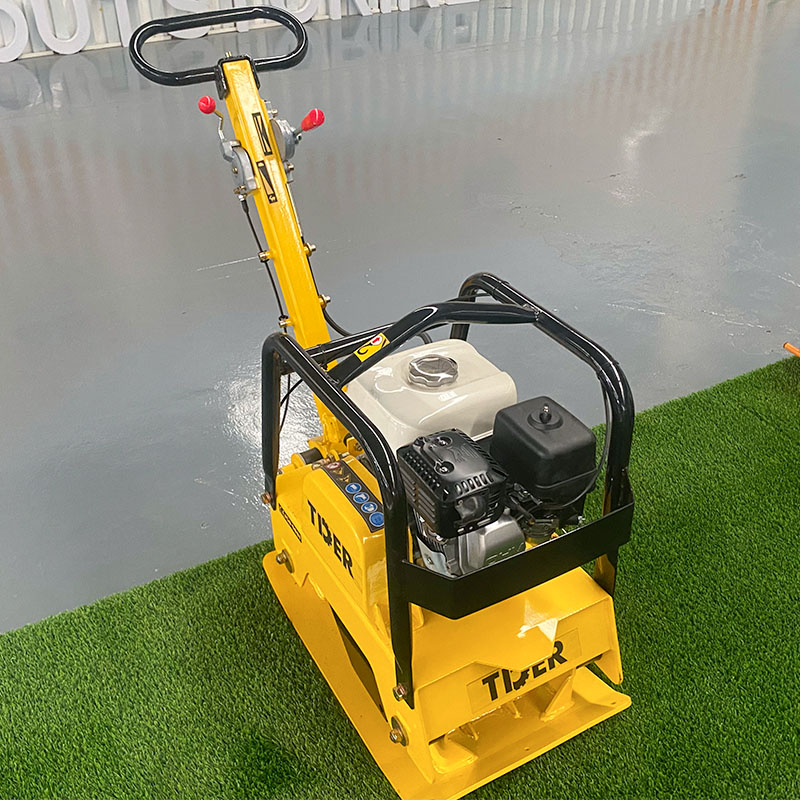

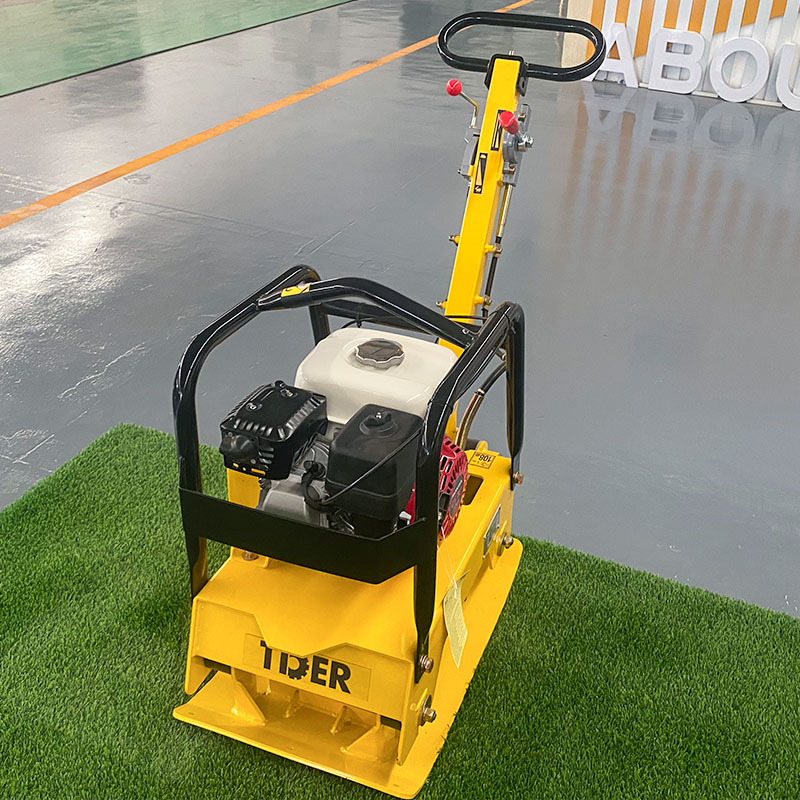

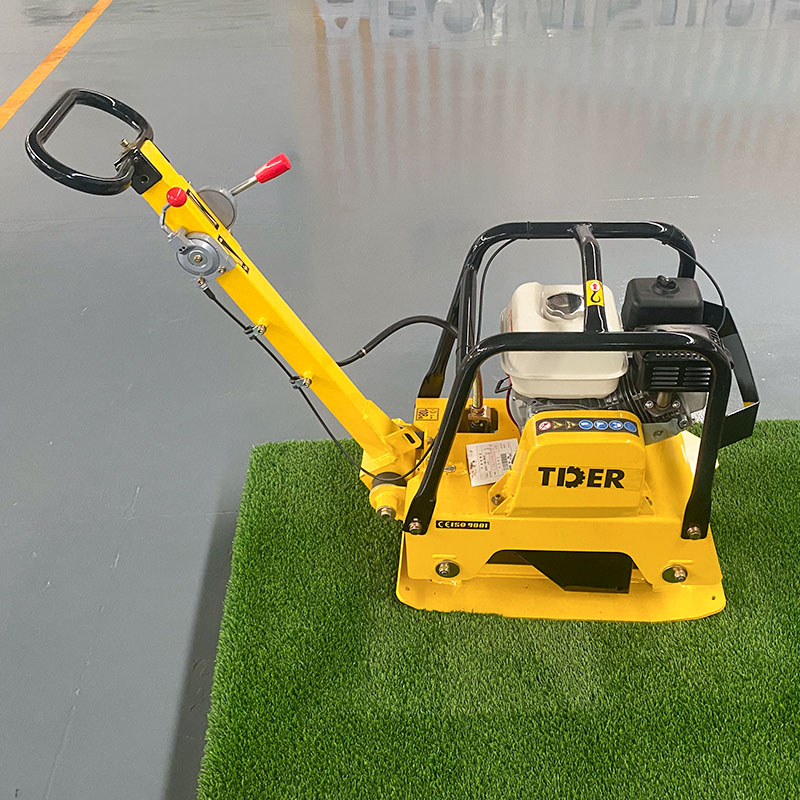

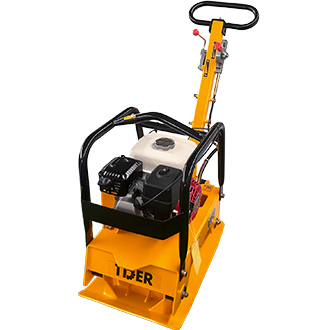

TRP125
Características
Easy Turning With Responsive Handling
The TRP125 combines excellent turning performance with responsive handling, making it easy for operators to change direction and position the machine during compaction work. Its well-balanced design also helps maintain low horizontal resistance for smoother movement across the working surface.
Honda Gasoline Engine For Dependable Performance
Equipped with a Honda gasoline engine as standard, the TRP125 provides dependable power for daily compaction work. The proven engine configuration offers a practical combination of performance, easy operation and long-term reliability.
Full-Width Water Spray For Asphalt Compaction
The integrated spray system provides reliable water coverage across the full width of the base plate, helping prevent asphalt from sticking during compaction. Efficient water distribution reduces unnecessary water consumption and means less frequent refilling during operation.
Low Hand-Arm Vibration For Greater Operator Comfort
The TRP125 is designed to minimize the operator's daily exposure to vibration. Reduced vibration transmitted through the guide handle helps make extended compaction work more comfortable and supports more controlled machine handling throughout the working day.
ESPECIFICAÇÕES
| Engine Brand | — | HONDA |
| Engine Model | — | GX160 |
| Engine Type | — | Single-Cylinder, Air-Cooled, Four-Stroke |
| Number of Cylinders | — | 1 |
| Engine Power | hp | 5.5 |
| Operating Weight | kg | 125 |
| Excitation Frequency | Hz | 72 |
| Exciting Force | kN | 25 |
| Compaction Depth | cm | 30 |
| Travel Speed | m/min | 28 |
| Working Efficiency | m²/h | 400 |
| Plate Size | cm | 62 × 40 |
| Working Dimensions | cm | 120 × 40 × 93 |
*NOTA: As especificações e configurações estão sujeitas a alterações devido a atualizações e melhorias contínuas do produto, sem aviso prévio. Todas as informações são apenas para referência e alguns recursos são opcionais. Entre em contato com nossa equipe de vendas internacionais para confirmação. As especificações e configurações finais estarão sujeitas ao contrato oficial assinado por ambas as partes.
